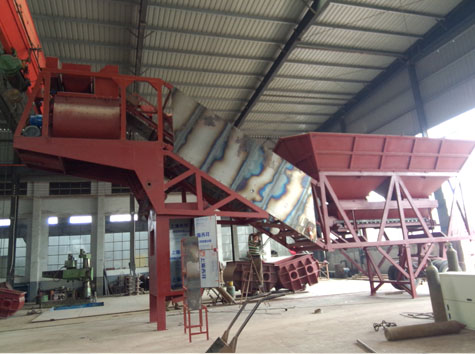

YHZS35 Mobile Concrete Batching Plant
+86 185 0384 5123Order Phone
Overview:
YHZS35 Mobile Concrete Batching Plant serves as the movable equipment that is widely applied in short-term and medium-term projects to produce plastic concrete, damp-dry rigid concrete, dry rigid concrete, etc.We have adopted the international advanced technologies on the design of the low price mobile concrete batching plant to ensure accurate and reliable weighing, even and effective mixing, and fast conveying.
Features:
- Easy delivery and installation
- Convenient movement, can be moved anywhere
- Quick mixing process, wide mixing range and good mixing quality
- Selectable automation degree: non-automation, semi-automaton, full automation
- Complete functions: unique ratio storage, self compensation of aggregates drop, alarming of over scale, online modifying formula, etc.
Technical:
| Model | YHZS35 |
| Rated Productivity | 35 m3/h |
| Main Mixer | JS750 |
| Power of Main Mixer | 30 kw |
| Max. Aggregate Diameter | 80 mm |
| Delivery Capacity | 0.75 m3 |
| Feeding Mode | Lift Hopper |
| Batching Unit | PLD1200 |
| Measuring Scope & Accuracy of Aggregate | 2200 kg ±2% |
| Measuring Scope & Accuracy of Cement | 450 kg ±1% |
| Measuring Scope & Accuracy of Water (by flow meter) | 200 kg ±1% |
| Additive Weighing Precision | 30 kg ±1% |
| Discharging Height | 3.8 m |
| Outline Dimension (at work) (L X W X H) | 19.8 m×8.2 m×8.5 m |
| General Power | 60.0 kw |
| Total Weight | 15000 kg |
| Control Mode | Automatic, semi-automatic batching, manual operation |
| Cement Silos(for customers’ choice) | According to customers’ demands, 50T or 100T cement silos can be used. |
| Screw Conveyor (for customer’s choice) | Each cement silo needs one φ219 screw conveyor. |
