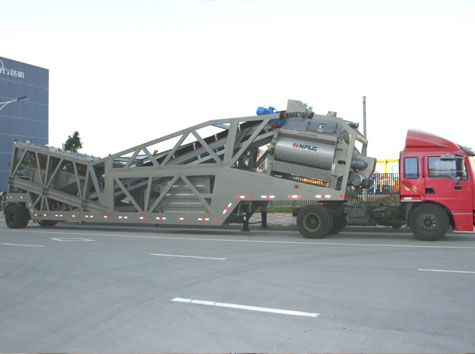

YHZS25 Mobile Concrete Batching Plant
+86 185 0384 5123Order Phone
Overview:
YHZS25 Mobile Concrete Batching Plant serves as the movable equipment that is widely applied in short-term and medium-term projects to produce plastic concrete, damp-dry rigid concrete, dry rigid concrete, etc.We have adopted the international advanced technologies on the design of the low price mobile concrete batching plant to ensure accurate and reliable weighing, even and effective mixing, and fast conveying.
Features:
- Easy delivery and installation
- Convenient movement, can be moved anywhere
- Quick mixing process, wide mixing range and good mixing quality
- Selectable automation degree: non-automation, semi-automaton, full automation
- Complete functions: unique ratio storage, self compensation of aggregates drop, alarming of over scale, online modifying formula, etc.
Technical:
| Model | YHZS25 |
| Rated Productivity | 25 m3/h |
| Main Mixer | JS500 |
| Batching Unit | PLD800 |
| Max. Aggregate Diameter | 80 mm |
| Capacity of Aggregate Bin | 2×8 m3 |
| Aggregate Measuring and Conveying Mode | Belt Conveyer |
| Measuring Scope & Accuracy of Aggregate | 1000 kg ±2% |
| Measuring Scope & Accuracy of Cement | 300 kg ±1% |
| Measuring Scope & Accuracy of Water | 150 kg ±1% |
| Measuring Scope & Accuracy of Additives | 50 kg ±1% |
| Transportation Mode | Pulled by a truck chassis |
| Discharging Height | 3.8 m |
