JZC350-DH Hydraulic Diesel Concrete Mixer
+86 185 0384 5123Order Phone
Overview:
HUANING Diesel Hydraulic Concrete Mixer is double conical drum concrete mixer. It has a hydraulic feeding system, longer service life and higher mixing efficiency.The JZC350-DH mobile diesel concrete mixer does not require any power when it works, providing power only through its own diesel engines.
Features:

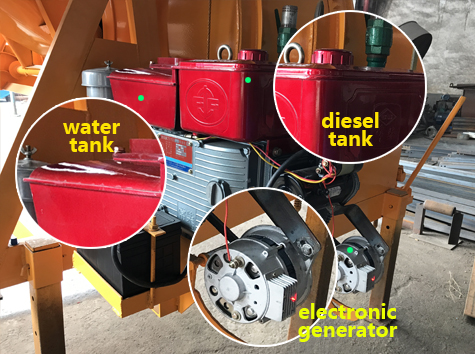

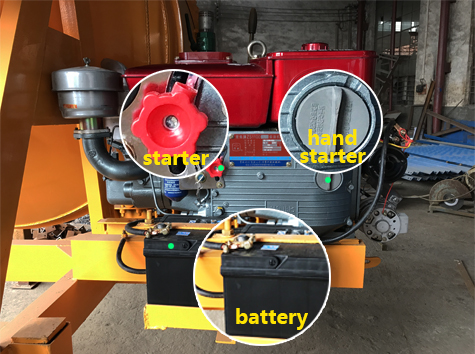

- Driven by diesel engine, it is the most suitable mixer in various areas where there is no electricity or it is inconvenient to supply electricity.
- Can be detached and shipped easily
- The machine not only can be driven by diesel engine, but also can be driven by electric power if conditions permit.
- Hopper lifting way: Hydralic.
Technical:
|
Model |
JZC350-DH |
| Discharging Capacity（L） | 350 |
| Loading Capacity（L） | 560 |
| Productivity（m3/h） | 10-14 |
| Maximum Size of Aggregate（mm） | 60 |
| Diesel Engine Power（KW） | 13.2 |
| Power of Water Pump（KW） | 0.75 |
| Hopper Lifting | By hydraulic system |
| Accuracy of Water Supply | ≤2% |
| Max Trailing Speed（km/h） | 20 |
| Speed of Mixing Drum（r/min） | 14 |
| Dimensions in Container (L×W×H) | 2300×1900×2500 mm |
| Overall Weight（kg） | 1350 |
