JZC350-DR Diesel Concrete Mixer
+86 185 0384 5123Order Phone
Overview:
JZC350-DR mobile diesel concrete mixer is the self-falling bipyramid concrete mixing machine and suitable for mixing plastic and low-fluidity concrete.It is mainly used in architectural building site,road construction,bridge project,water-power project,small and medium concrete plant,etc.
Features:

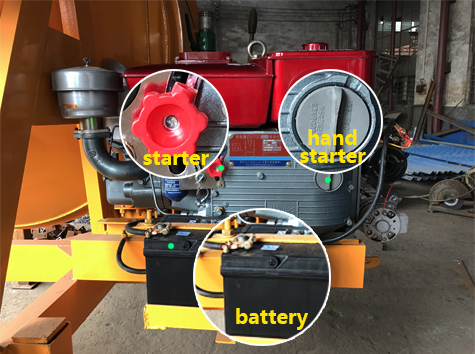

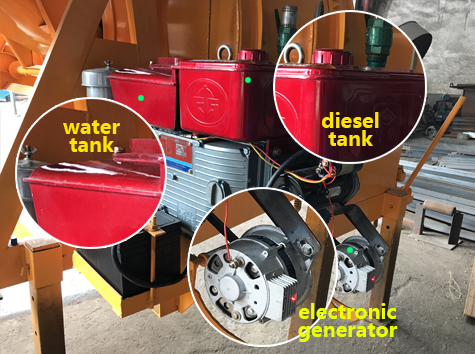

- Driven by diesel engine, it is the most suitable mixer in various areas where there is no electricity or it is inconvenient to supply electricity.
- Reasonable structure, higher reliability, even mixing and high productivity.
- The machine can not only be driven by diesel engine, but also can be driven by electric power if conditions permit.
- Can be detached and shipped easily.
Technical:
| Model | JZC350-DR |
| Discharge Capacity（L） | 350 |
| Feed Capacity（L） | 560 |
| Theoretical productivity（m3/h） | 10-14 |
| Mixing drum speed（r/min） | 14 |
| Maximum aggregate size（mm） | 60 |
| Water precision | ≤2% |
| Stirring motor（KW） | 5.5 |
| Lift motor（KW） | 4.5 |
| Pump motor（KW） | 0.75 |
| Dimensions(L×W×H) | 2766×2140×3000 |
| Weight（kg） | 1950 |
