HZS90 Concrete Batching Plant
+86 185 0384 5123Order Phone
Overview:

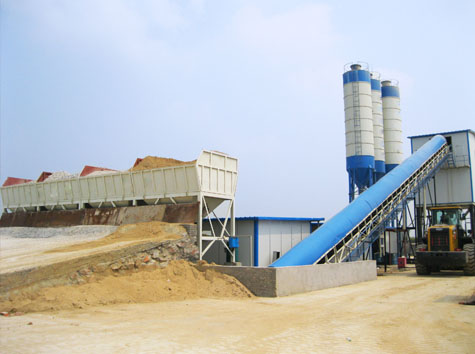

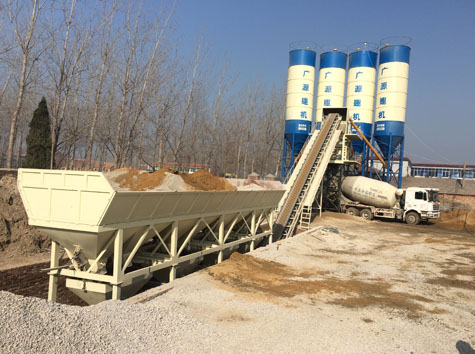

HZS90 concrete mixing station including the twin shaft mixer, batching machine, cement silo，screw conveyor, belt conveyor and microcomputer control room. The JS series double horizontal shaft forced mixer can produce plastic, dry concrete and other concrete with short mixing time,beautiful appearance and high production efficiency.The whole set of equipment is widely used in large and medium-sized construction, road and bridge and the production of concrete precast products factory.
Features:
- The concrete mixer JS1500 (The main machine of the batching plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
- The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
- Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.
- The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.
- The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Technical:
| Model | HZS90 | |
|---|---|---|
| The Whole Station | Max. Productivity | 90 m3 /h |
| Discharge Height | 3.8 m | |
| Working Cycle | 60 s | |
| Dimension (LxWxH) | 58555x12376x18704 mm | |
| Power | 145 kw | |
| Concrete Mixer | JS1500 | |
| Batching Machine | PLD2400 | |
| Pneumatic system | Air Compressor Model | 1.8-7 |
| Nominal Displacement | 1.67 m3/min | |
| Rated Discharge Pressure | 0.8 mpa | |
| Motor power | 11 kw | |
| Measurement Accuracy of Weighing system | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Admixture | ±1% | |
