HZS60 Concrete Batching Plant
+86 185 0384 5123Order Phone
Overview:

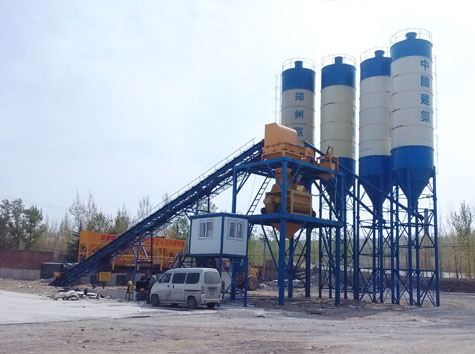

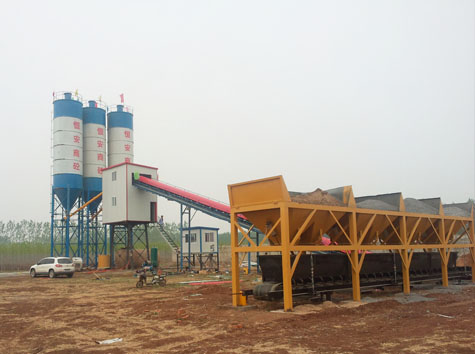

HZS60 concrete mixing station including the twin shaft mixer, batching machine, cement silo，screw conveyor, belt conveyor and microcomputer control room. The JS series double horizontal shaft forced mixer can produce plastic, dry concrete and other concrete with short mixing time,beautiful appearance and high production efficiency.The whole set of equipment is widely used in large and medium-sized construction, road and bridge and the production of concrete precast products factory.
Features:
- Reliable working performance.
- High efficient compulsory concrete mixer.
- Accurate batching system.
- Full automatic control system.
- Excellent environmental protection, dust collection system and anti-noise design.
Technical:
| Model | HZS60 | |
|---|---|---|
| The Whole Station | Max. Productivity | 60 m3/h |
| Discharge Height | 3.8 m | |
| Working Cycle | 60 s | |
| Dimension (LxWxH) | 28445x10595x18707mm | |
| Power | 105 kw | |
| Concrete Mixer | JS1000 | |
| Batching Machine | PLD1600 | |
| Pneumatic system | Air Compressor Model | 1.5-7 |
| Nominal Displacement | 1.67 m3/min | |
| Rated Discharge Pressure | 0.8 mpa | |
| Motor power | 7.5 kw | |
| Measurement Accuracy of Weighing system | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Admixture | ±1% | |
