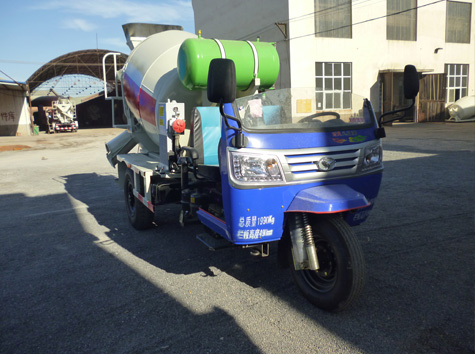

Two Cubic Meters(2m³) Concrete Truck
+86 185 0384 5123Order Phone
Overview:
Concrete truck can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate and stone.
Features:
- Small and convenient.
- Saving time and labor.
- Superior performance with the mixing tank.
- Simple operation and useful application.
Technical:
| Type | 2m3 Mixing Transport Tank |
|---|---|
| Geometry capacity(m3) | 3.6 |
| Effective mixing capacity(m3) | 2 |
| Tank diameter(m) | 1.55 |
| Axis tilt | 14° |
| Dimensions(L×W×H) | 3510×1550×1780 mm |
| Installation size(mm) | 760×2750 |
| Speed(r/min) | 0-10 |
| Water box volume(L) | 350;300;400 |
| Type | Shi Feng 2m3 Concrete Truck |
|---|---|
| Power(HP) | 90 |
| Emission standard | National stage Ⅲ |
| Urea tank | — |
| Crossbeam(mm) | 200 |
| Gearbox | 5 |
| Rear axle(mm) | 1068 |
| Tyre size | 750-16 |
| Tread(mm) | 2050 |
| Wheelbase(mm) | 3300 |
| Braking | Air brake |
| Fastest speed(km/h) | 60 |
| Dimensions(L×W×H) | 5300×1950×2500 mm |
