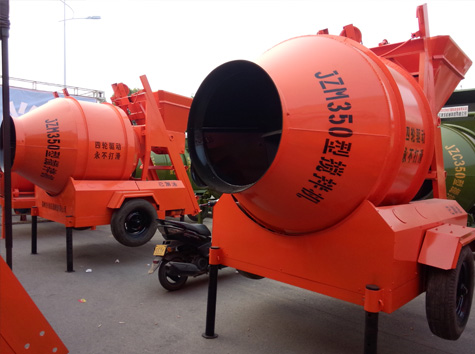

JZM350 Friction-driven Drum Concrete Mixer
+86 185 0384 5123Order Phone
Overview:
Hua Ning JZM350 Concrete Mixer is a nice choice for accomplishing small scale concrete construction jobs. HUANING JZM series Concrete Mixer working noise is small, can achieve indoor operation. With smaller size and light weight, portable mixers can be moved with ease. Portable mixer provides a choice for small amount onsite concrete mixing work.
Features:
- Easy to be moved between construction sites.
- Easy to operate with low energy consumption.
- Optimized structure design makes portable mixers flexible and reliable.
- Diesel engine mixer is available, which is our special design for clients in regions lacking of electricity.
- Even mixing effect and durable performance.
- Spare parts are available during the year.
Technical:
| Model | JZM350 |
| Discharging Capacity (L) | 350 |
| Feeding Capacity (L) | 560 |
| Productivity (m3/h) | 10~14 |
| Rotation Speed (r/min) | 14 |
| Max. Aggregate Size (mm) | 60 |
| Water Precision | Error≤2% |
| Mixing Motor (kw) | 5.5 |
| Lifting Motor (kw) | 4.5 |
| Pump Motor (kw) | 0.55 |
| Max. Dragging Speed (km/h) | 20 |
| Tyre Size | 6.50-16 |
| Total Weight (kg) | 1950 |
| Dimension (mm) | 2766x2140x3000 |
