PLD800 Concrete Batching Machine
+86 185 0384 5123Order Phone
Overview:

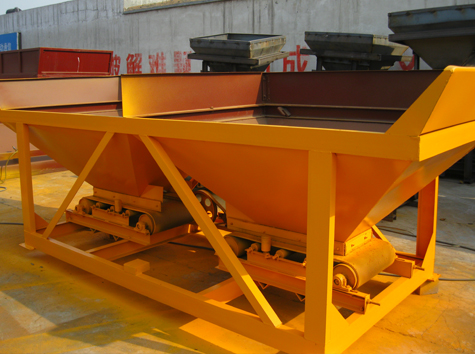

PLD series concrete batching machine is a kind of automatic batching equipment which is used in conjunction with the mixer. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user.This concrete batching machine consists of material storage bucket, weighing system, material supplying system, and electric control system, ect. The material feed-in is conducted by belt conveyor.
Features:
- Automatically finish the proportioning and measuring of sand and stone.
- The control system is made up of controller and strong electricity part.
- The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance, strong anti-jamming ability, simple operation, etc.
- It can control the specified proportioning times, and accumulate the total times automatically.
- Customers can choose the numbers of proportioning bins according to different use.
- This series of products adopt electronic weighing, digital display.
Technical:
| Model | PLD800 |
| Weighing Hopper Capacity (m3) | 0.8 |
| Storage Hopper Capacity (m3) | 2x2 |
| Productivity (m3/h) | 48 |
| Batching Accuracy | ≤2% |
| Upper Weighing Limit (kg) | 1500 |
| No. of Aggregate Kinds | 2 |
| Feed Height (mm) | 2300 |
| Belt Conveyor Speed (m/s) | 1.25 |
| Power (KW) | 4x3 |
| Dimension(mm) | 5600x1600x3000 |
| Total Weight (kg) | 2300 |
